2.4GHz Wireless Digital Baby Monitor Kit

2.4GHz Wireless Digital Baby Monitor Kit

• Battery not included
• Additional camera not included
• Digital wireless technology provides excellent image and sound clarity
• Infrared night vision for round the clock monitoring
• 2.4 in. LCD color monitor or receiver
• Monitor kit will provide parents the reassurance
• Interference-free
• Wireless video or audio monitoring
• 4-channel: 1 monitor supports up to 4-camera
• S2B circuit
• Infrared night vision allows low light viewing up to 10 ft. from camera
• High sensitivity microphone
• Easy to position camera with swivel-head
• 2-way communication
• Up to 330 feet open area wireless transmission
• VOX standby mode (voice activated power saver mode)
• Both video monitor and camera can be powered by adapter or battery operated
• Rechargeable lithium battery (monitor only)
• Camera uses 3-AAA battery
• Built-in belt clip on monitor
• Transmission frequency: 2400 MHz - 2480 MHz
• Transmission power: 12 dBm
• Operating frequency: 2450 MHz
• Modulation mode: FHSS
• Operating temperature: 32° F - 140° F
• Operating humidity: 20 % - 80 % RH
• Consumption current: 150 mA + 15 mA
• Power supply: DC 5 volt
• Effective pixel: 320 x 240
• Receiving sensitivity: -85 dBm
• Video system: NTSC / PAL
• Battery working time: 5 hr.
• Color configuration: RGB
• Camera pixel image: NTSC: 510 x 492
• PAL: 628x582
• Sensor: Color CMOS image sensor
• Horizontal resolution: 360 line
• Viewing angle: 60 deg.
• Frame: 25
• IR LED: 10
• Lens: F = 6.0 mm
• Minimum illumination: 1.5 LUX (IR off), 0 LUX (IR on)
• Band width: 4 MHz
• Night vision distance: 10 ft.
• Battery working time: 8 hr
• Motion detection distance: > 5m
• Sound control sensitivity: >60 dBA

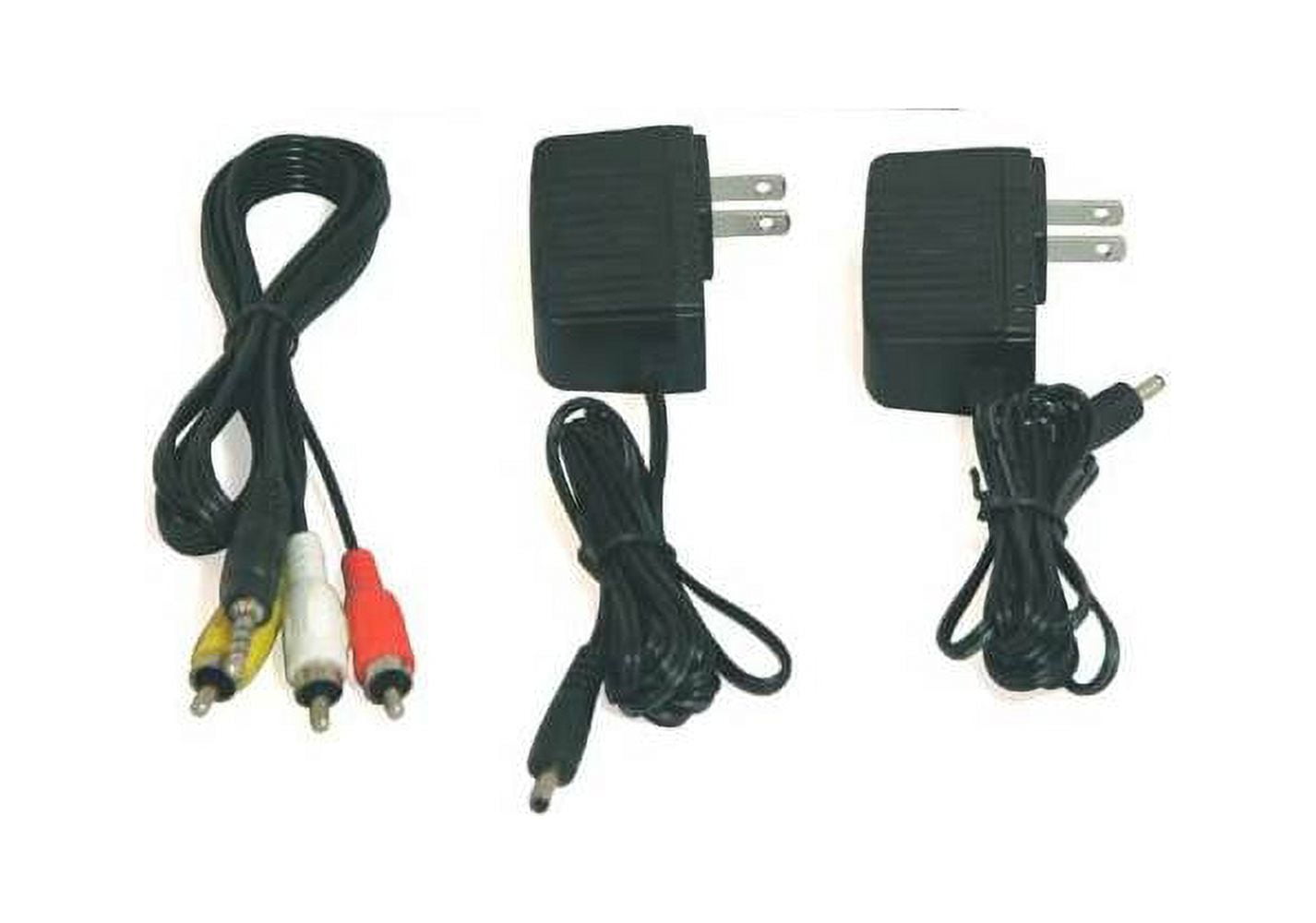

• Component: Wireless monitor x 1 pc, wireless camera x 1 pc, 5 volt power supply x 2 pc, AV cable x 1 pc
• White or gray color
• Camera: 2.8 in. W x 2 in. D x 4.7 in. H (4.5 oz)
• Overall: 3.9 in. L x 3.4 in. W x 4 in. H
• Instruction Manual
